ITEM DESCRIPTION
Standard load:
Maximum door weight 180 kg (per pair)Application:

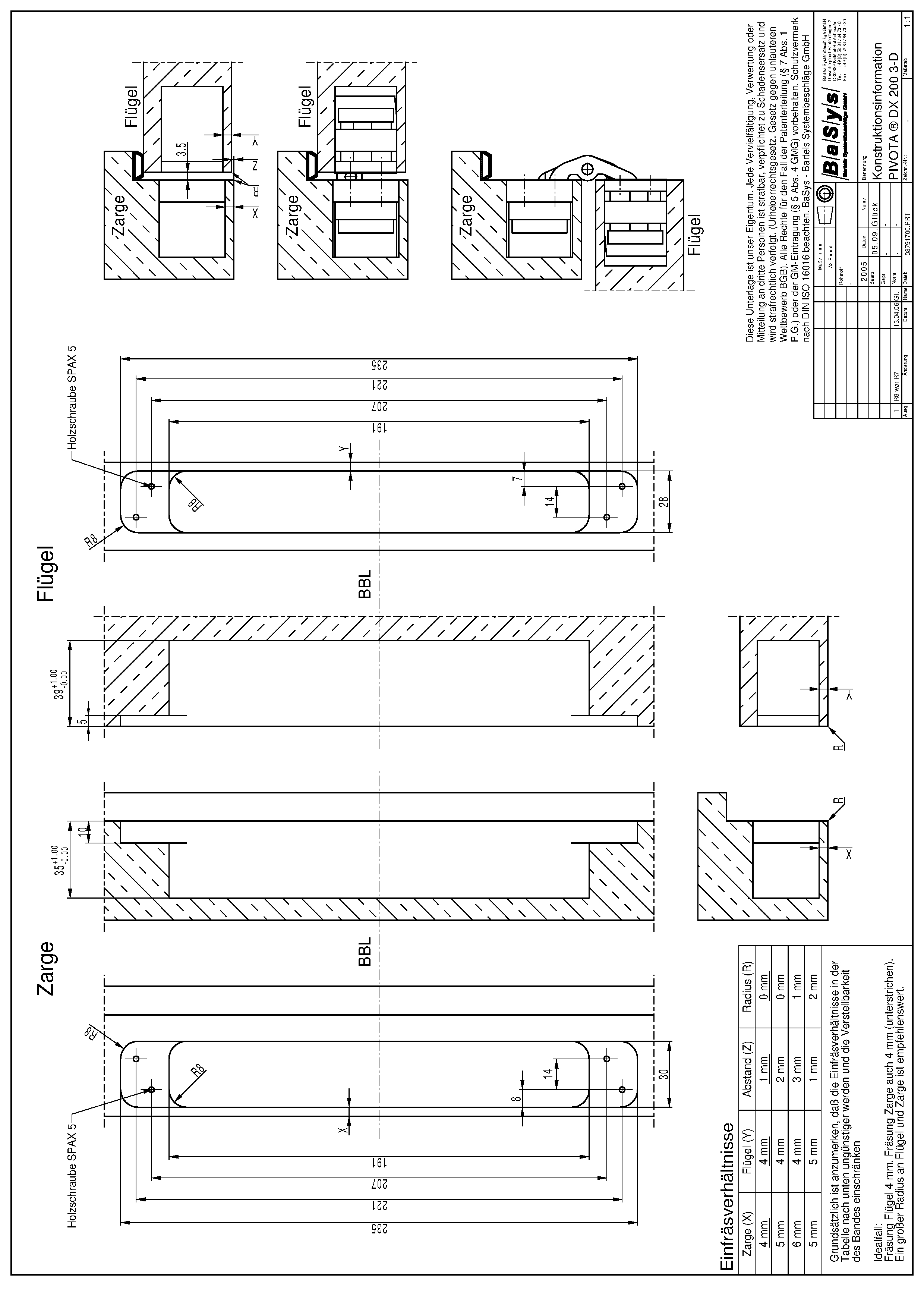

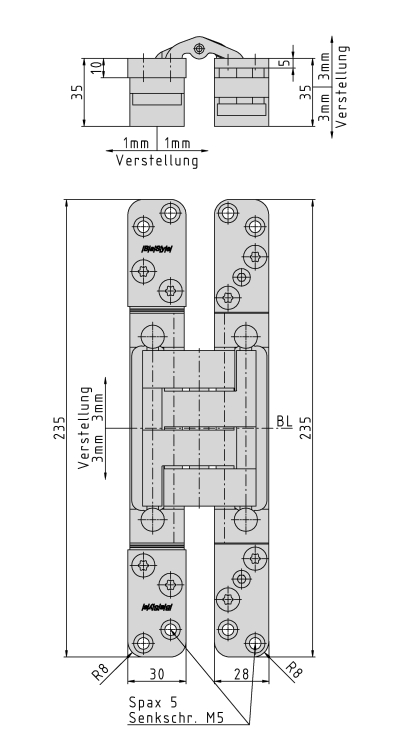

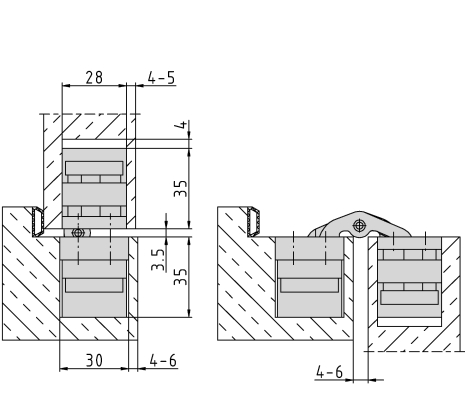

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearingsAccessories:
PIVOTA ® DX safety plate for frame part, retainer for casing or steel frames Note: also available in "Design"-optionItem number | Finish |
040751 | Edelstahl Look |
039928 | Alu Look F1 |
039871 | velour vernick. |
