ITEM DESCRIPTION
Standard load:
Maximum door weight 80 kg (per pair)Application:

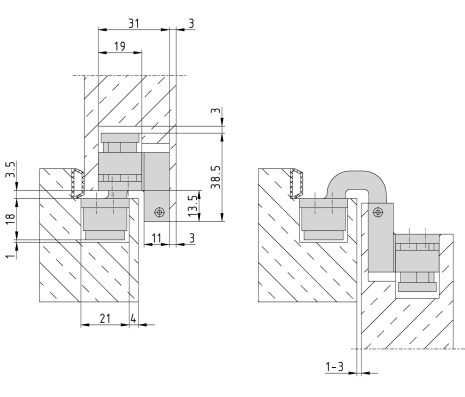

Concealed hinge for rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings;Accessories:
Safety plate for frame part, retainer for casing or steel frames Note: also available in "Design"-option| Item number | Finish |
| 040627 | Alu Look F1 |
| 040543 | Edelstahl Look |
| 039890 | velour vernick. |
