ITEM DESCRIPTION
Standard load:
Maximum door weight 300 kg (per pair)Application:

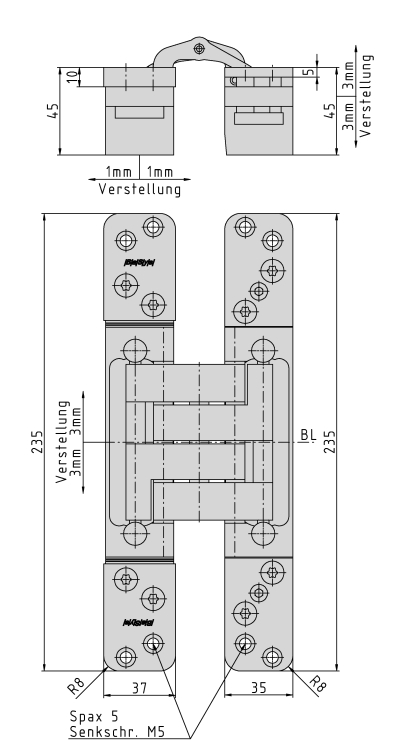

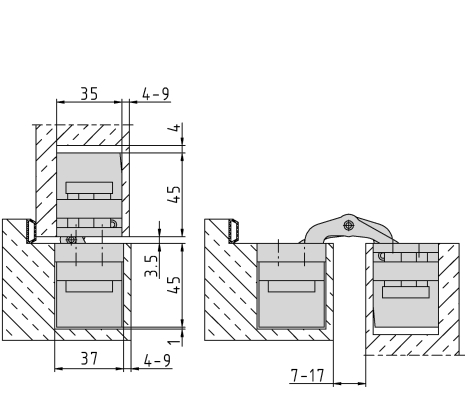

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings; suitable for claddings; solid stainless steel joints for high stressAccessories:
PIVOTA ® DX safety plate for frame part, retainer for casing or steel framesItem number | Finish |
040726 | velour vernick. |
040727 | Edelstahl Look |
040728 | Alu Look F1 |
