ITEM DESCRIPTION

Standard load:

Maximum door weight 160 kg (per pair)


Application:

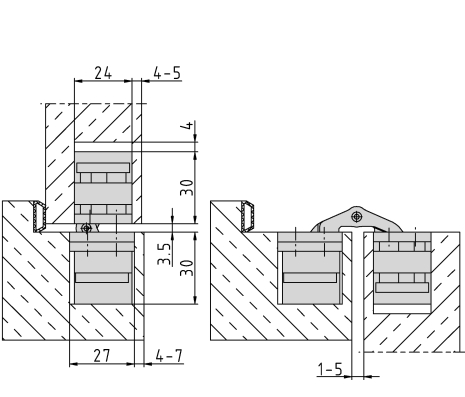

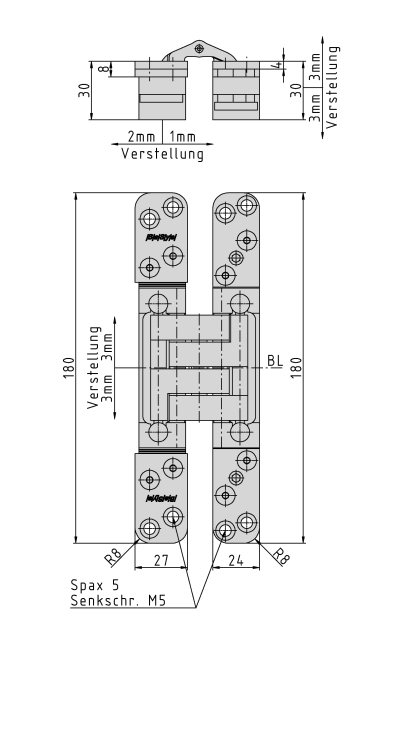

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings; suitable for fire resistant doors; massive stainless steel body and joints


Accessories:

PIVOTA ® DX safety plate for frame part, retainer for casing or steel frames

Item number	Finish
039517	Niro gebürstet
039746	Niro poliert
