ITEM DESCRIPTION

Standard load:

Maximum door weight 120 kg (per pair)


Application:

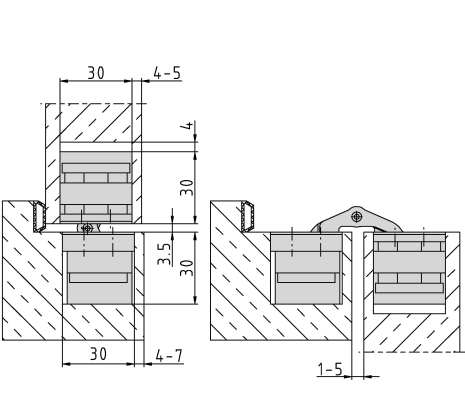

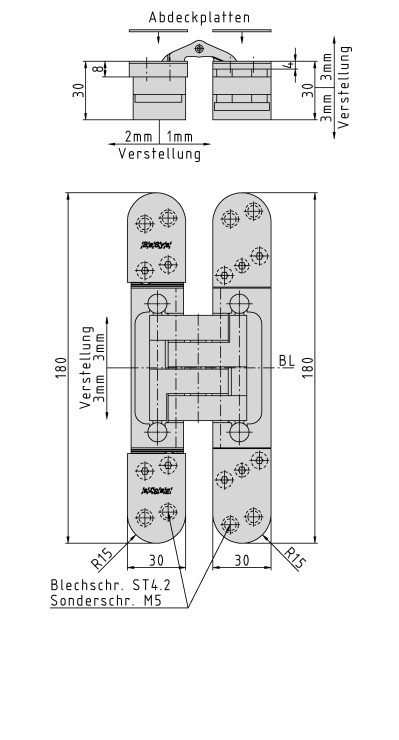

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings; magnetically fixed cover plates for optics free-of-screws


Accessories:

PIVOTA ® DX safety plate for frame part, retainer for casing or steel frames Note: incl. fixing screws

Item number	Finish
039489	velour vernick.
040620	Alu Look F1
040591	Edelstahl Look
