ITEM DESCRIPTION
Standard load:
Maximum door weight 120 kg (per pair)Application:

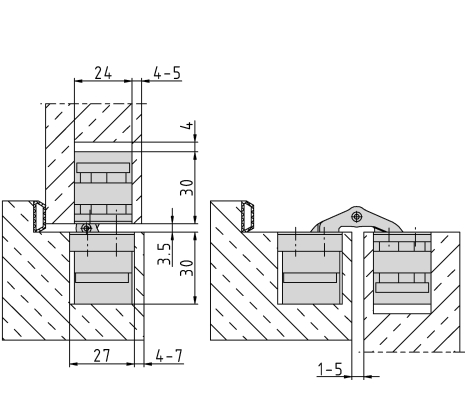

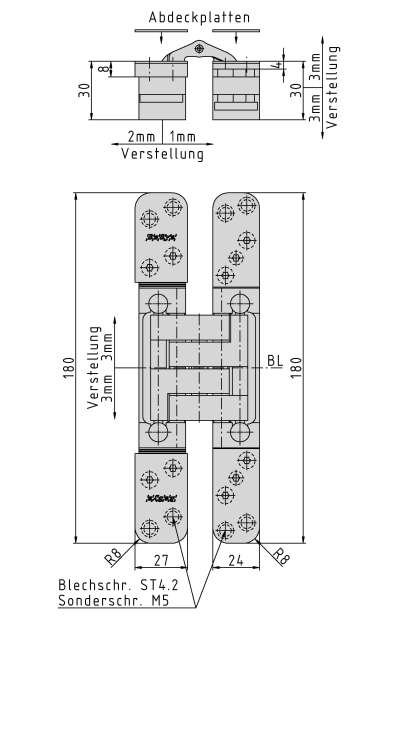

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings; magnetically fixed cover plates for optics free-of-screwsAccessories:
PIVOTA ® DX safety plate for frame part, retainer for casing or steel frames Note: incl. fixing screwsItem number | Finish |
039713 | velour vernick. |
040540 | Edelstahl Look |
040618 | Alu Look F1 |
