ITEM DESCRIPTION
Standard load:
Maximum door weight 100 kg (per pair)Application:

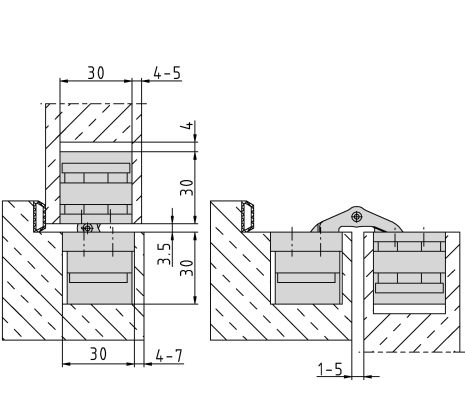

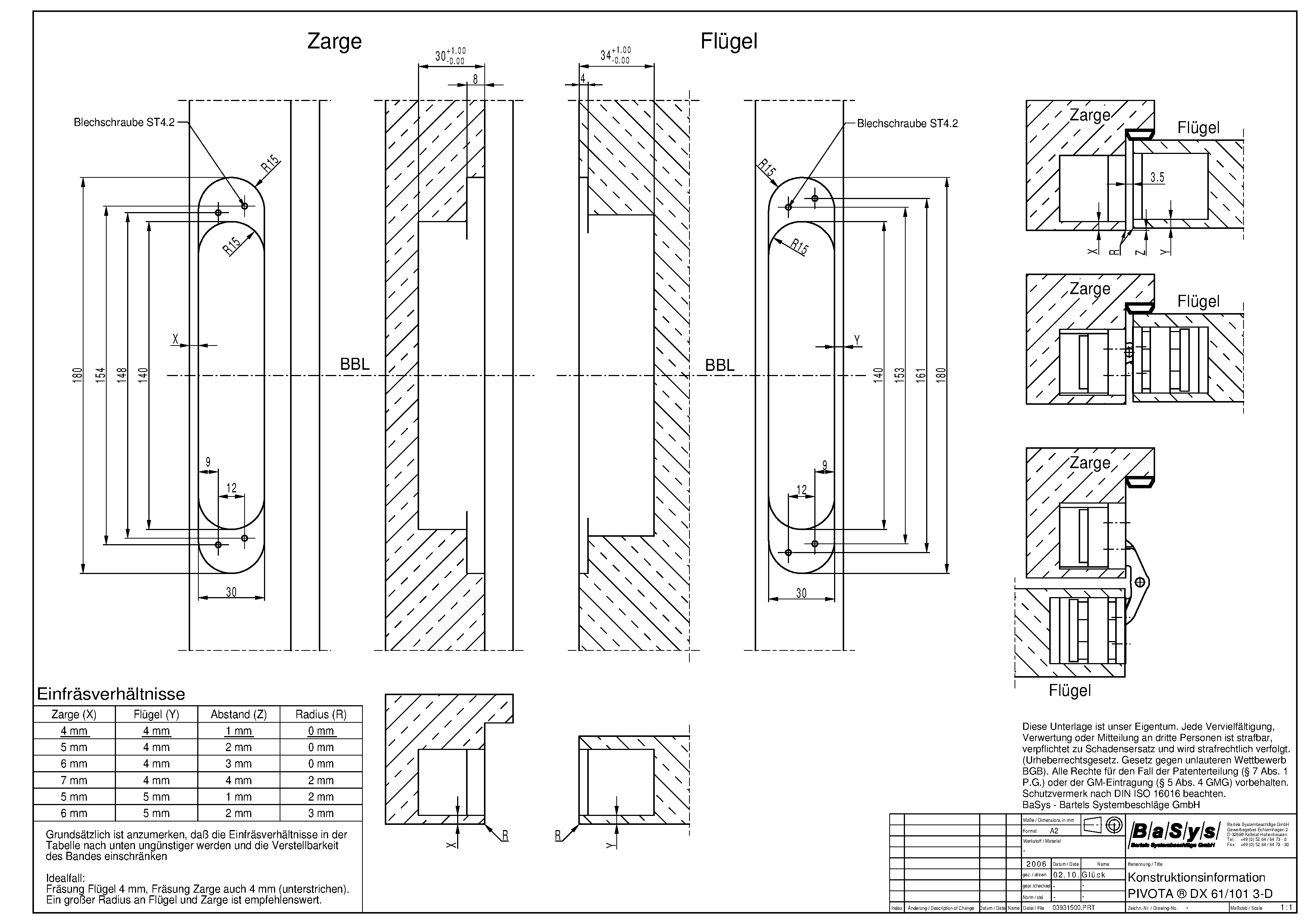

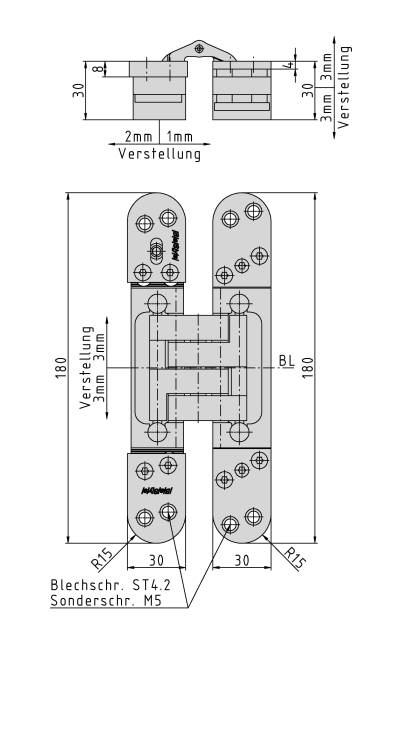

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings; integrated height adjustment ("IHA")Accessories:
PIVOTA ® DX safety plate for frame part, retainer for casing or steel frames Note: incl. fixing screwsItem number | Finish |
039828 | Alu Look F1 |
039479 | velour vernick. |
