ITEM DESCRIPTION
Standard load:
Maximum door weight 80 kg (per pair)Application:

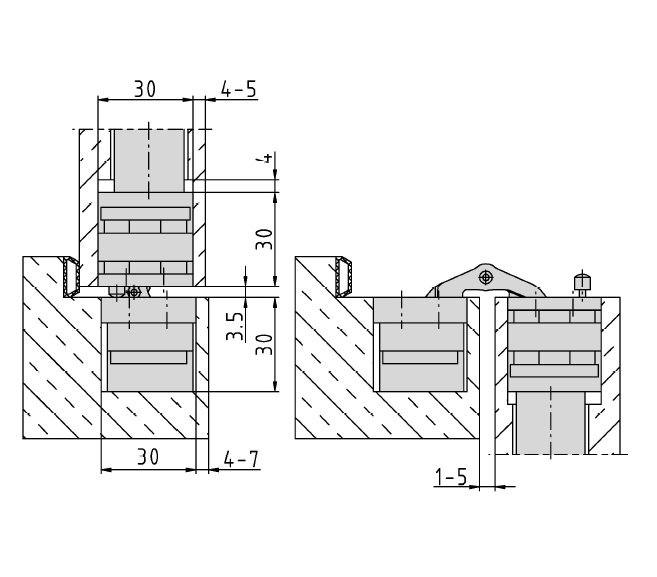

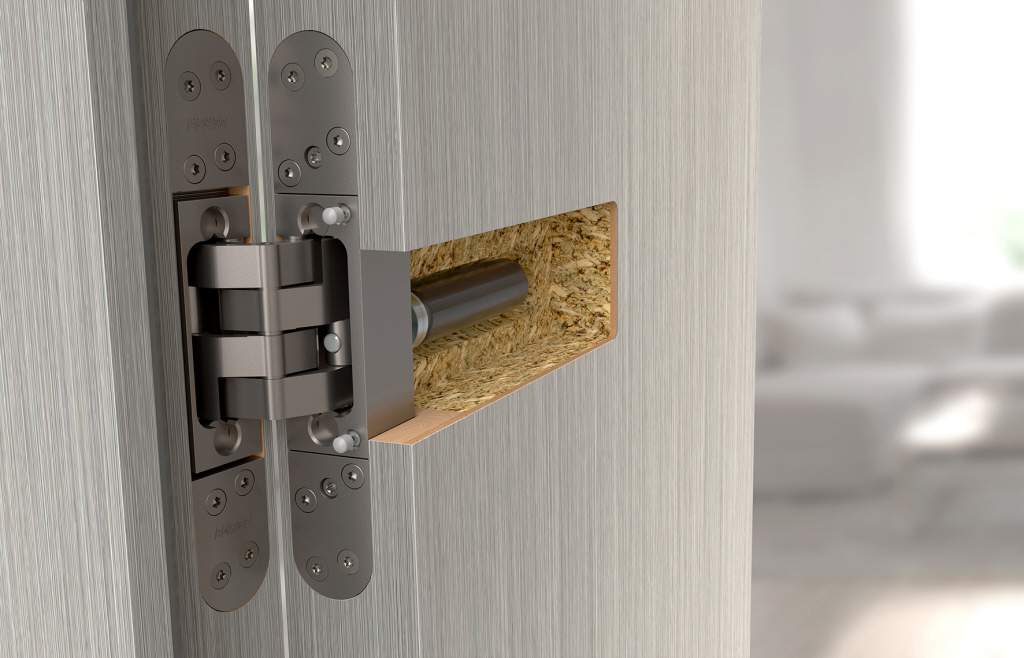

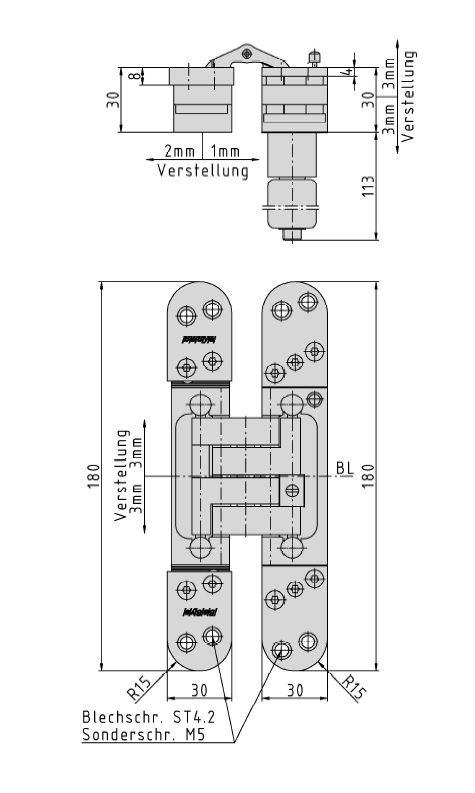

Concealed hinge for non-rebated doors, hinge leaves are mortised into frame and door; 3-dimensional adjustability, maintenance-free bearings; hinge is equipped with a concealed self-closing mechanismAccessories:
PIVOTA ® DX safety plate for frame part, retainer for casing or steel frames Note: incl. fixing screwsItem number | Finish |
040753 | velour vernick. |
040754 | Alu Look F1 |
040755 | Edelstahl Look |
